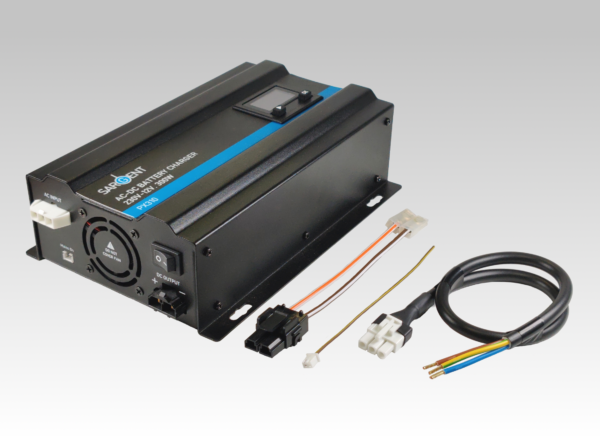

Description Sargent 3-Stage Battery Charger, 300Watt, 20Amp with LCD Display Kit. The PX310 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances. The integrated LCD display shows battery charging status and allows setup for different battery chemistries. A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging. Supplied with connecting cables. Note:- If replacing a manufacturer fitted PX300, please order the appropriate conversion harness, as connections on the PX310 are different. Specification: Power 300W (max) Input voltage range 200 – 240VAC Charging Current 20A @14.5V (max) Boost Voltage 14.7V (max) Float Voltage 13.8V (max) Compatible batteries Flooded, Gel, AGM, Lithium Battery size 70 – 220Ah Cooling method Intelligent fan with Silent Mode Dimensions (LxWxH) 221 x 157 x 69mm Weight 1.55kg Files: PX310 Datasheet PX310 User Instructions
