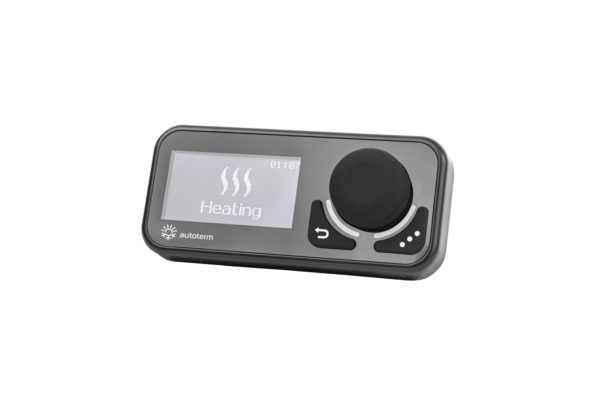

Description Technical parameters: COMFORT CONTROL Our air & liquid heaters have a new control panel that will help to control your Autoterm heater more conveniently and most easily. Intuitive user interface; LED status display. Thermostat function; Additional heating options; Quick access button for heating; Vehicle battery safety function; Heater maintenance reminder; Precise integrated digital temperature sensor; Multiple languages (EN; NL; DE; PL; ES; IT; FR; CZ; SE; NO; FI). Heating modes for air heaters TEMPERATURE MODE: Heater will maintain set temperature by reducing the heating power, without shutting off the combustion process. * The temperature mode for Air 2D 12/24V and 4D 12/24V heaters in the 6355, 6350, 6260, and 6265 series versions have a new algorithm. In this mode, the heater acts normally by lowering power when it gets near the set temperature. However, if it goes past the temperature setpoint, the heater will turn off and wait until the temperature drops by 3 degrees below temperature setpoint before starting again POWER MODE: Heater will operate constantly at set power level. HEAT VENTILATION: Heater will operate till the temperature is reached 1°C above the set temperature, shut off the combustion process and start to ventilate till the temperature drops 5°C below the set temperature. When temperature drops, heating starts again. THERMOSTAT MODE: Heater will operate till the specified temperature is reached then shuts off the combustion process and ventilation. After the temperature drops by specified degrees heating will start again. Heating modes for liquid heaters PRE-HEATING MODE: Heater will operate till the certain coolant temperature is reached then shuts off the combustion process. After the temperature of the coolant drops heating will start again. ECO MODE: (only for FLOW 14D) Pre-heating mode with reduced power and fuel consumption. Temperature of the coolant is reached slower than in “Pre-heating mode.” THERMOSTAT MODE: (only for Flow 5) Heater will operate till the specified interior temperature is reached then shuts off the combustion process. After the temperature drops by specified degrees heating will start again. Temperature is read by control panel. *for setting up “Thermostat mode” see instructions for AIR heaters. Temperature sensor Custom calibrated digital sensor with /- 1.5 degree offset. Timers Max – 3 timers. Heating mode can be chosen for each timer. All 3 timers can be active simultaneously. Set timer is active continuously till disabled Available cycles: ED – Every day EW – Every workday Custom days Status display Display LED red – heating LED blue – ventilation LED green – shutting down Wiring compatibility assy.2067 – Wiring for control panel (1.8 m) assy.2324 – Wiring for control panel (5.0 m) assy.3298 – Wiring for control panel (7.0 m) assy.4269 – Extension wiring for control panel (2.6 m) assy.4366 – Cable wiring for AUTOTERM Flow 5D (12V) assy.4044 – Cable wiring for AUTOTERM Flow 5D / 5B (12V) assy.4394 – AUTOTERM Flow 14D wiring harness for control panel (1.8 m) Maximum allowed cable wiring length with Comfort Control – 10 m AUTOTERM heater compatibility AUTOTERM air heaters: AUTOTERM Air 2D AUTOTERM Air 4D AUTOTERM Air 8D AUTOTERM Air 9D AUTOTERM liquid heaters: AUTOTERM Flow 5D / 5B AUTOTERM Flow 14D (for verification of compatibility for older heaters sold by AUTOTERM, please contact us:
[email protected]) Display dimensions (mm) 37 x 20 Control panel dimensions (mm) 82 x 37 x 19
