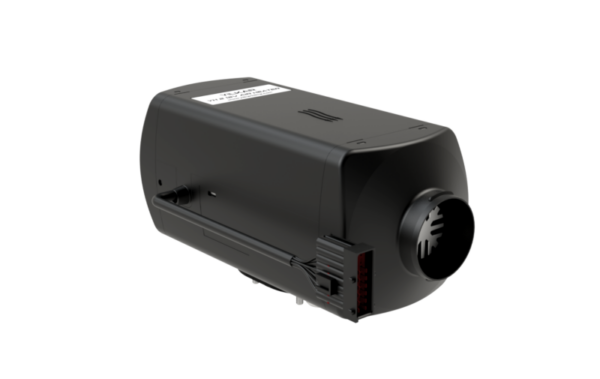

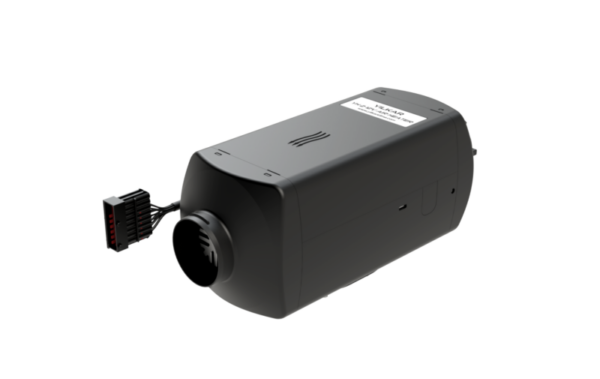

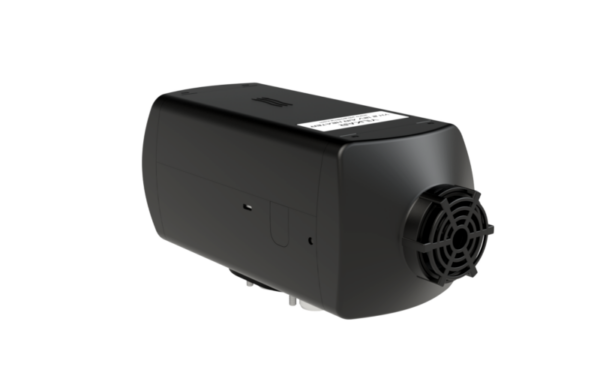

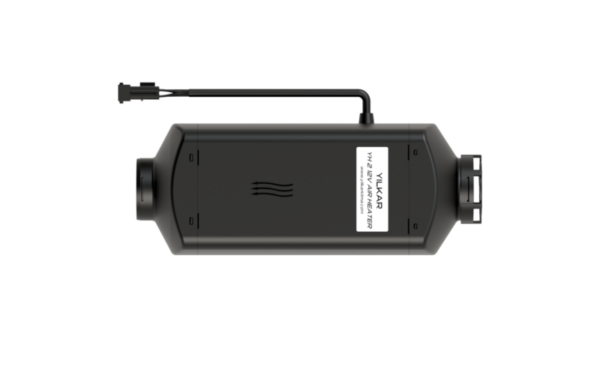

Description View Yilkar Standard Kit Contents Technical Information ECE R122 Number 122 R – 0010869 ECE R10 Number 10R – 05 15114 Heating Capacity 0,9 – 2,5 kW Air Flow 90 m³/h (max.) Fuel Type Diesel Fuel Consumption 0,28 lt/h (max.) – 0,2 lt/h (average) Operating Voltage 12 / 24 VDC Starting Current 8A @ 12VDC – 4A @ 24VDC Operating Current (max.) 3A @ 12VDC – 1.5A @ 24VDC Weight 3 kg Unit Dimensions 320x130x150 mm Standard Installation Kit Make a difference in passenger comfort with Yılkar Air Heaters Air heater is a heater device that operates independently of the engine, has low electrical consumption, and has the ability to quickly heat the desired place by using the heat energy generated by the fuel. Air Heater can be used anywhere that has a small energy source (battery) that can make electrical components work. Therefore, it has many uses. These; people transport, truck cabins, caravans, marine, ambulance, etc. special utility vehicles, defence industry, and various electric vehicles. All parts required for the installation are provided. 1. Air Heater 2. Air routing hose kit 3. Air inlet / outlet vent kit 4. Main wiring 5. Vibration-absorbing seal 6. Combustion and exhaust air clamp kit 7. Combustion air hose 8. Exhaust air hose 9. Polyamide fuel hose 10. Fuel metering pump 11. Vibration damper pump connection kit 12. Fuel filter kit 13. Fuel pull hose kit 14. YH Comfort Control Unit
